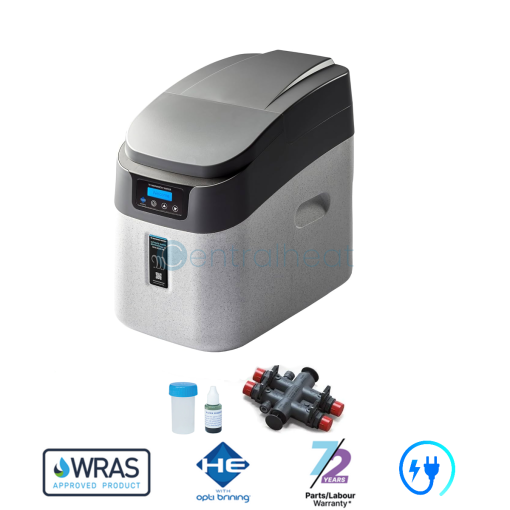

Monarch Ultimate Mini Aqua HE Water Softener 15 / 22 MM Kit

Monarch Ultimate MINI Aqua HE Metered Water Electric Softener

Monarch HE Range benefits include:

- Greater exchange capacity Unique HiEx resin with Opti-Brining®

- Easy install Hi-Flow, Rapid-Fit bypass as standard

- Sustainable Uses up to 24% less water and 12% less salt per annum

- Fast 8 minute mini top up regeneration

- Compact 28mm shorter

- Free flow valve technology The highest flow rates with the lowest pressure drop

- UK specific Designed exclusively for the UK market

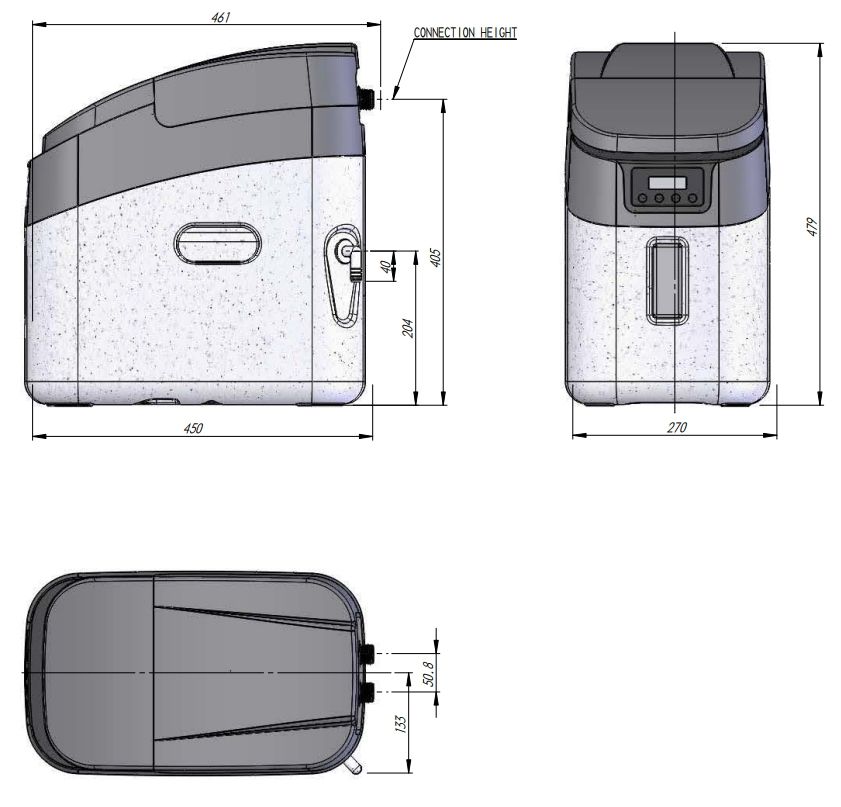

- Dimensions: 480H x 270W x 485D

All figures relate to the new Midi HE, compared to previous models, based on a three person household.

Opti-Brining® for sustainable softening

Opti-Brining® is Monarch Water’s unique, new system to manage water within its next generation of HE water softeners.

The intelligent Opti-Brining® component continuously monitors the softener’s activity and water usage, regenerating only when necessary, to save more water, salt and energy than previous generations.

Opti-Brining® technology offers higher exchange capacity, higher flow rates and reduced water consumption during regeneration. With up to 46% greater capacity per regeneration than previous units for a truly sustainable future.

Hi-Flow Rapid-Fit bypass for easy installation

The NEW HE range of water softeners all feature Monarch Water’s NEW Rapid-Fit bypass which has reduced 85% of the components needed when installing a water softener.

Available for 15mm, 22mm and 28mm supplies, the Rapid-Fit also has 3/8” connections for both hard and soft water tee points. It also features a 1” high flow check valve built into the body to comply with WRAS guidelines, giving an impressive flow rate of 80lpm.

With Monarch Water’s NEW Rapid-Fit bypass, installers simply connect the water in and out from the mains supply, then connect two hoses to the softener for quick and easy installation.

Additional Features

- The highest flow rates of any softener available - up to 78 litres per minute

- Easy view control panel with back lit display, removable front cover

- Easy push button set up - only takes a few seconds

- Unique Self Protect Programme that:

• Delays regeneration until 2am
• Stores data in the event of a power cut
• Initiates an additional regeneration if ever required + 8 minute mini top up
• Learns and remembers your water usage patterns to make substantial savings on both salt and water use

- Safe low voltage electronics via plug-in transformer (supplied)

• Detects leaks in your plumbing system

- Meter control with intelligent Opti-Brining as standard - only regenerates the resin that has been used

- Opti-Brining® with HE resin. A winning combination giving up to:

• 46% greater capacity
• 24% less water use
• 56% salt saving over conventional softeners

- CE Approved

- WRAS Approvals

- The UK's only softener range suitable for 15, 22 and 28mm supplies

- Automatically adjusts to BST and GMT time changes

Installation Requirements:

• Water pressure: 1.5 - 5 BAR
• Operating temperature: 2 - 49C.
• Electrical supply: 3-pin socket. Drain facility.
• If using Maxiflow hoses please allow an extra 18mm to depth.
• If using 28mm system please allow an extra 25mm depth.

Choose from:

Standard 15mm Hose Kit for use with conventional hot water cylinder & loft mounted cold storage tank.

OR

Combi Maxiflow 22mm Hose for use with combination boiler systems & pressurised systems.



The Ultimate Water Softener

- Removes existing scale and prevents new scale forming

- Protects your appliances including dish washer, washing machine and shower

- Kinder to your skin and saves you money

Warranty

7 Year parts guarantee (2 Year labour guarantee)*

The below postcodes are automatically covered by a parts and labour warranty as set out in the relevant sales brochure for the individual model/range.
