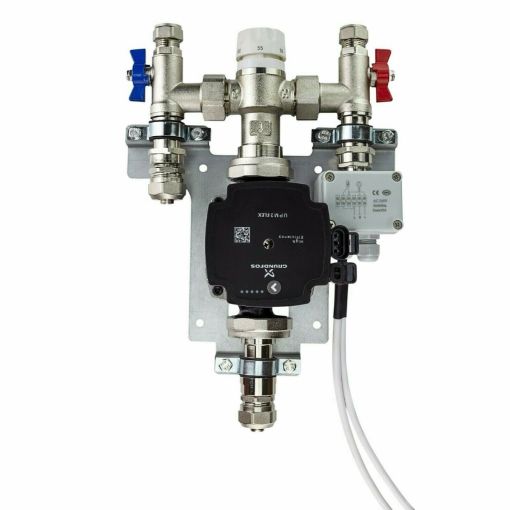

Single Room Pump Pack Mixing Valve Unit with Grundfos A-rated UPM3 Pump

UFH Control Pack for providing temperature controlled mixed water for single room application to a UFH system with a Heat output up to 3kw.

• Compact bolt on unit providing quick & simple installation.
• Provide controlled mixed temperature water to UFH up to 3kw.
• Easy set up with an adjustable range of 40c to to 60c.
• Controls flow temp to +/- 3c even with changing boiler flow & return temps.
• Fail-safe feature.
• Grundfos A-rated Pump UPM-3 FLEX


 Hot Feed and cold return are 15mm compression

Flow to and return from under floor loop are 1/2 inch BSP Female comes with 16mm adaptor.
